Q-BOX-M(TOP19B 1*LAN)

Model : Q-BOX-M(TOP19B 1*LAN)

Description :
◆IntelBaytrail-D / I / M seriesprocessors;
◆ J1900\\J1800；
◆ 1*DDR3 SODIMM 240 Socket；
◆ 5*RS-232, 1*RS422/485（optional6*RS232）;
◆ Support power-on automatic startup function, jumper selection；
◆ Single input DC power supplyDC12V ( wide voltage power supply support 9-36V input Optional)
◆ Size:235*200*56.5mm ；

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆IntelBaytrail-D / I / M seriesprocessors

◆ J1900\J1800；

◆ 1*DDR3 SODIMM 240 Socket；

◆ 5*RS-232, 1*RS422/485（optional6*RS232）

◆ Support power-on automatic startup function, jumper selection；

◆ Single input DC power supplyDC12V ( wide voltage power supply support 9-36V input Optional)

◆ Size:235*200*56.5mm ；

Specification

Model No.	Q-BOX-M
Size:	23520056.5mm
Processor	Intel?Baytrail-D / I / M seriesprocessors
Chipset	Baytrail single chip
RAM	Onboard 2GB/4GB DDR3LRAM, Max. Expanded 8Gb
Expansion slot	1 DDR3 SODIMM 204 Socket
Network	Onboard 1*Gigabit Ethernet
Audio	Onboard ?HDA ALC662
Storage	1MINISATA Support SSD; 1SATA 1*SATA_HDD
Chassis Color	Black

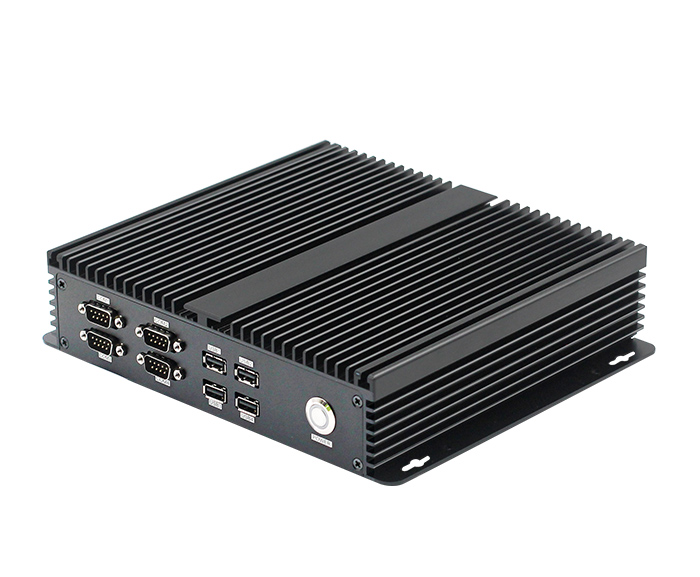

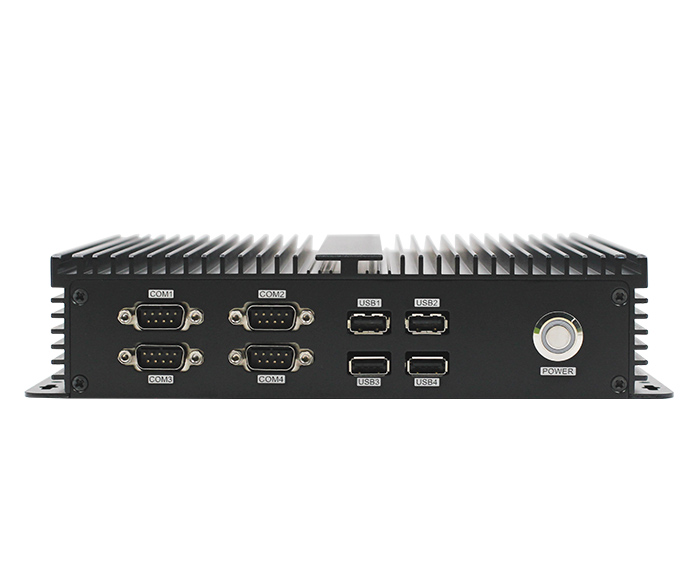

Front panel I/O	4COM（COM1and COM2 RS422/RS485 or RS232 Optional） 4USB 1POW-ON/OFF（switch） 1indicator?light

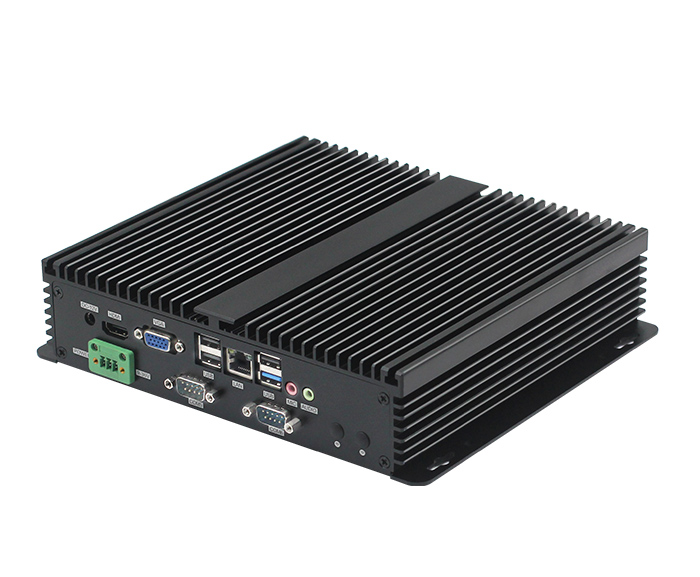

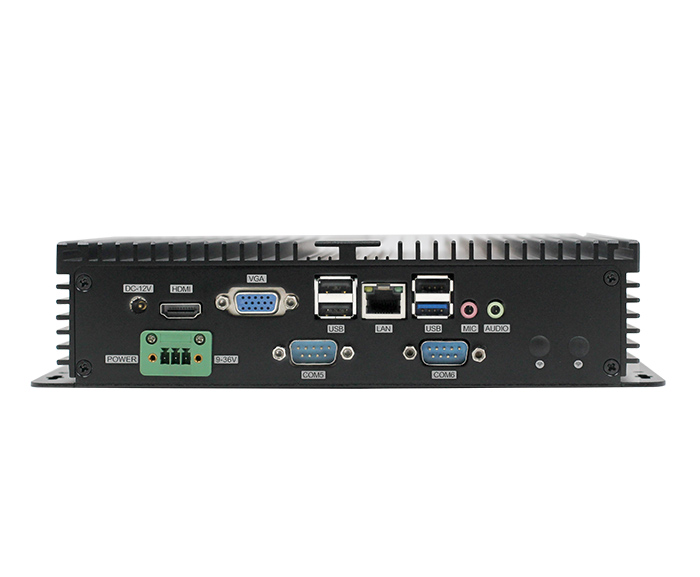

Back panel I/O	1VGA 1HDMI 1USB3.0 3USB2.0 1LAN 1line out 1mic in 2COM(RS232) 1DC 1Phoenix Terminals 3PIN power interface
Standard Accessories	112V 5Apower adapter 1WIFI antenna
Package

?Size

?
order information

Model No

SPECIFICATION

Processor

TOP19B-J1900

Integrated Celeron Baytrail-D / I / M?J1900

Quad core 2.0Ghz up to2.4Ghz

?

J1900(Quad core）

TOP19B-J1900

Integrated Celeron Baytrail-D / I / M?J1800

Dual core 2.0Ghz up to2.4Ghz

J1800（Dual core）
