Q-BOX-S2-Q-BOX Series-Shenzhen ZunSia Intelligent Technology Co., Ltd.

◆ Integrated Intel 6^th Mobile Skylake-U single chipset CPU；

◆ 2 *DDR4 SODIMM 260 Socket；

◆ Providing 1*VGA,1*HDMI 1.4（Support 4K display output）；

◆ 4 RS-232, 2 RS422 / 485 optional, RS485 supports automatic flow direction control (can choose 6 RS232 or 1 RS485 / RS422, 5 RS232)

◆ Support auto power-on function and jumper selection;

◆ Single input DC power supply, DC12V;

◆ size:236*185*85mm ；

Specification

Model	Q-BOX-S2
size	23618585mm
Processor	Integrated Intel 7th Mobile Kaby lake-U?singal Chip CPU
Chipset	Intel? Kaby lake-U?serial SOC
Ram socket	2?*DDR4?SODIMM 260?Socket
Lan Port	Onboard 2*Gigabit LAN
Audio	Onboard?HDA ALC662
Storage	1SATA3.0 1MSATA
Color	Silver

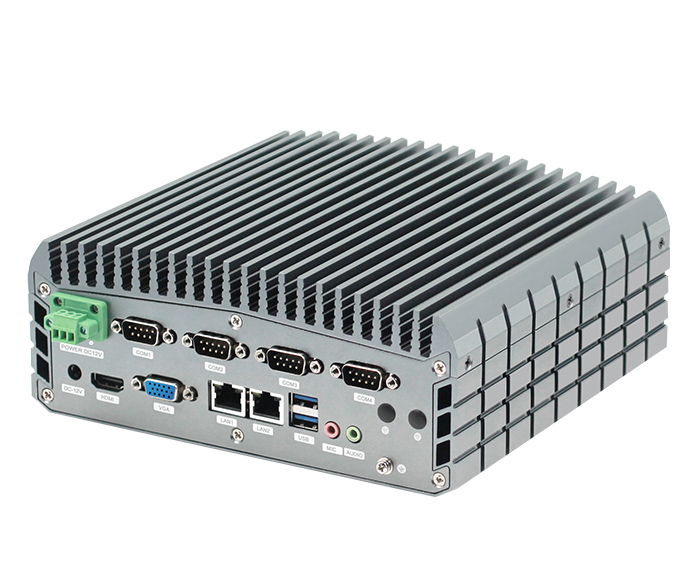

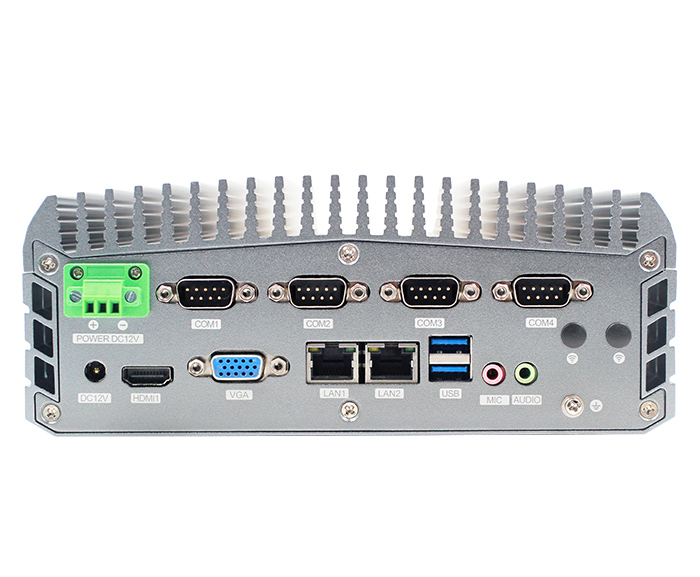

Rear panel interface	2LAN ?1HDMI ?1VGA ?4COM ?1DC ?1MIC-IN ?1LINE-OUT?2USB3.0 ?2WIFI Antenna interface 1Ground Interface

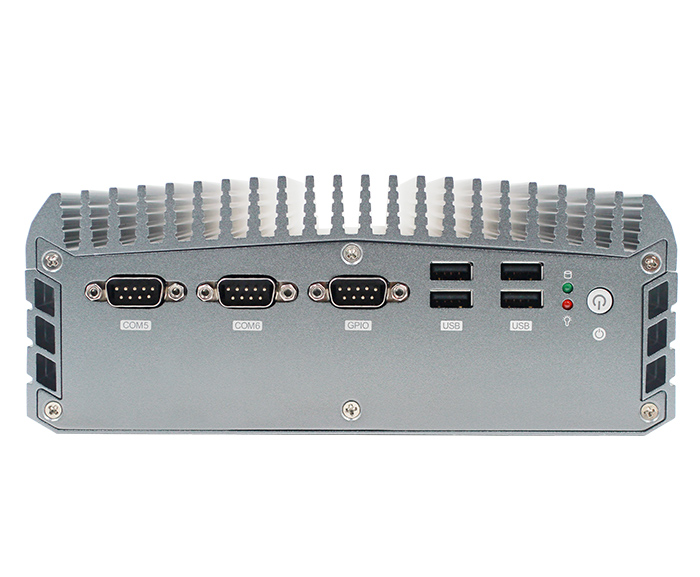

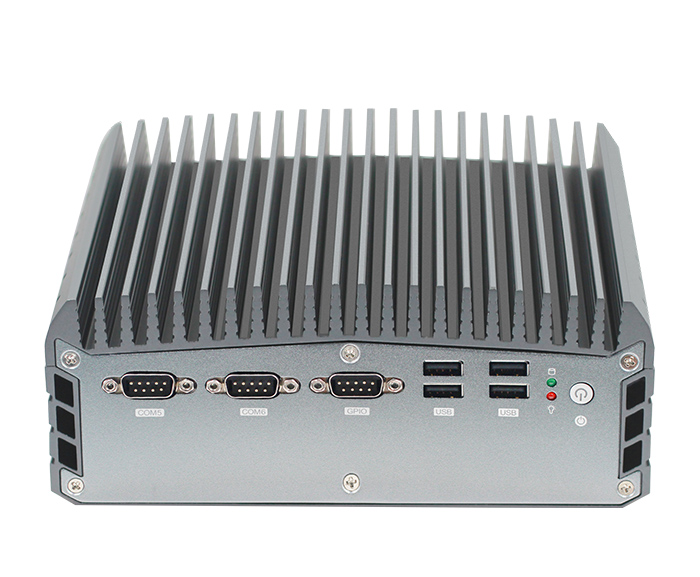

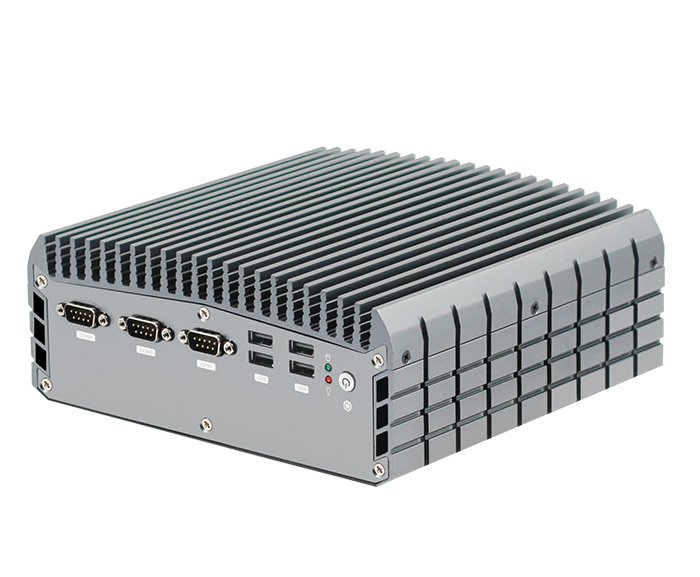

Front panel interface	2COM 1GPIO 4USB2.0 1power switch 1Hard drive indicator 1Power Indicator

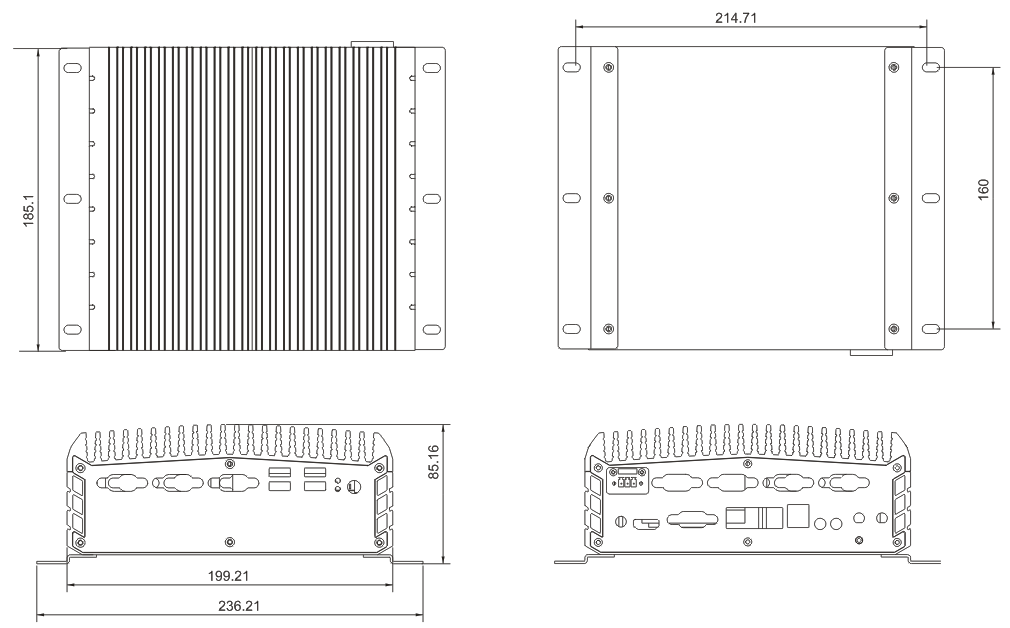

Size

order information:

Motherboard Model	description	CPU optional
? TOP200B-I3	Integrated Intel 7th Mobile Kaby lake-U	I3-7100U ?
? TOP200B-I5	Integrated Intel 7th Mobile Kaby lake-U	I5-7200U
? TOP200B-I7	Integrated Intel 7th Mobile Kaby lake-U	I7-7500U
? TOP200B-Celeron	Integrated Intel 7th Mobile Kaby lake-U	3865U
