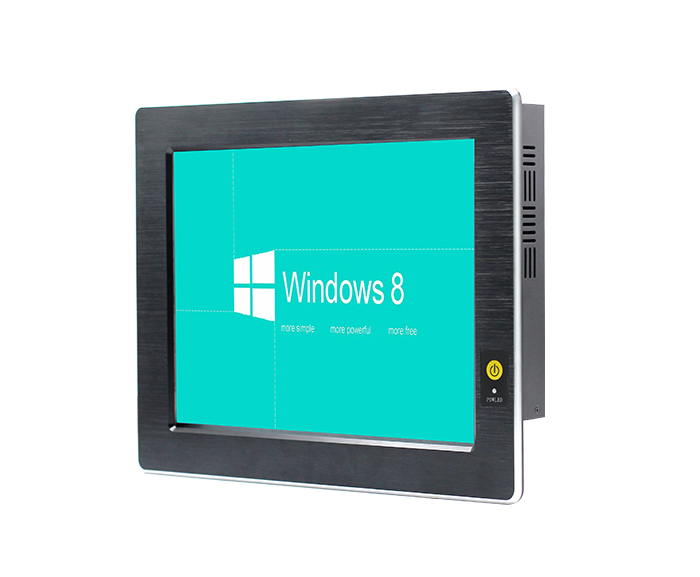

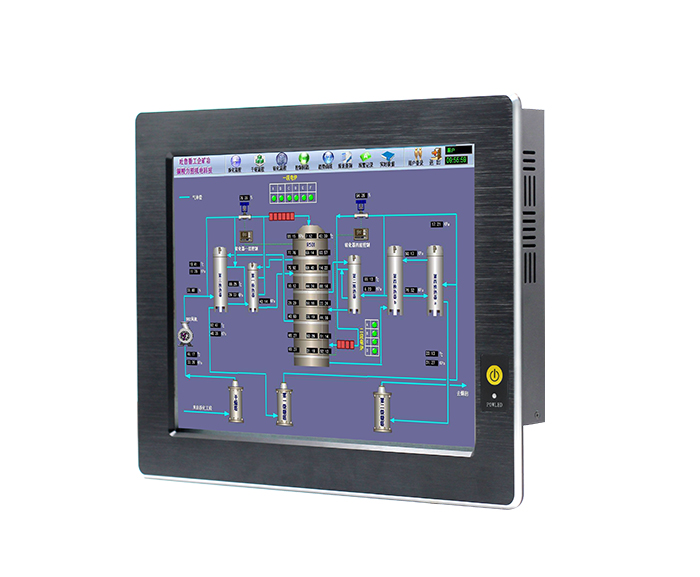

PPC-BT10A

Model : PPC-BT10A

Description :
◆ With Intel Baytrail-D/I/M serial CPU;

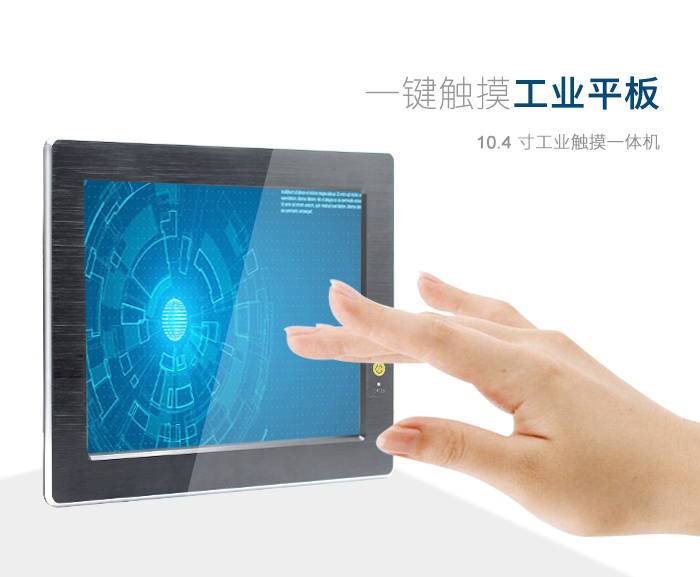

◆ 10inch TFT LED display and five-wire resistive touch screen;
◆Front panel protection class IP65;
◆ Support SATA and M-SATA storage;
◆ Support wireless 3G/WIFI Internet access;
◆ Reserve 2 sets of Phoenix terminals (customized function is used);
◆ DC12V5A power supply;

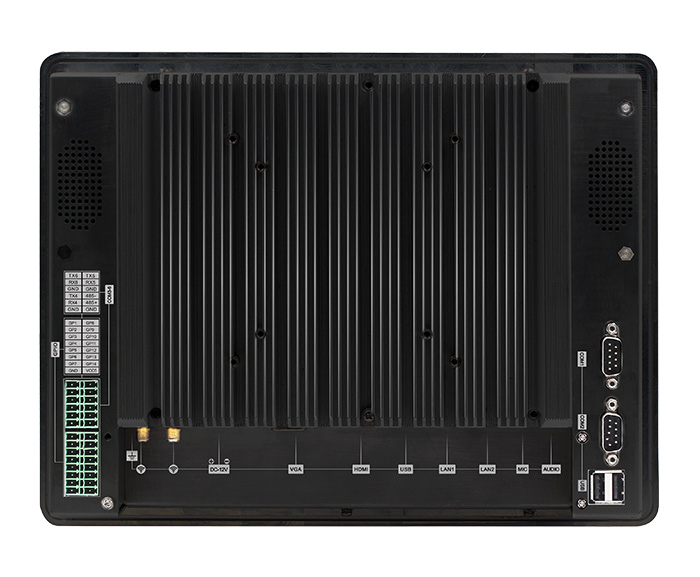

◆ Sealed and fanless design;

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ With Intel Baytrail-D/I/M serial CPU

◆ 10inch TFT LED display and five-wire resistive touch screen

◆Front panel protection class IP65

◆ Support SATA and M-SATA storage

◆ Support wireless 3G/WIFI Internet access

◆ Reserve 2 sets of Phoenix terminals (customized function is used)

◆ DC12V5A power supply

◆ Sealed and fanless design

Specifications:

? ? ? CPU	CPU	With Intel Baytrail-D/I/M?serial Cpu
	Memory	Integrated 2GB\4GB DDR3 1066/1333MHz,can add one Ram socket , max support 8g Ram
	storage	Onboard SSD16/32/64/128G（Optional） SATA?and MSATA，HDD?and SSD（Optional）
	Internet?(LAN)	2*RTL8111E RJ45?Gigabit Lan Port
	? ? ? I/O interface	5RS-232, 1RS422/485,2DB9?Interface RS-232 3Three-wire RS-232， 2USB2.0,2USB3.0， 114BIT GPIO?interface， 1LINE OUT 1MIC， 2Wifi?antenna Port， 1power switch button， 1VGA Max resolution Support 2048x1536 1HDMI Max resolution support 32002000@60HZ
	Expansion wire	1*full size Mini-PCIE?socket
	watch-Dog timer	0-255 second, Sample code optional
physcial Characterstics	size	29022153.8mm
physcial Characterstics	Wieght	2.43kg
OS?support	Operate System	Support Windows 7/Windows8/Windows8.1/Windows10/Linux/Android
Power support	Input Voltage	Single input DC DC12V power supply +/- 5%
Power support	Power consumption	20W
? ? LCD?display	Display type	10inch TFT LED
	Maximum resolution	800*600
	Perspective	80 (Left), 80 (right), 70 (UP), 70 (Down)
	Lumens (cd/m2)	350cd/m2
	Contrast	400:1
	Backlight life	30,000 hrs (Min.)
? Touch screen	Types of	Five-wire resistive touch screen
	Transmittance	≥85%
	Controller	USB?Port
	Durability (number of touches)	>3500?million times
? ? Environment	Operating temperature	-20℃ ~ +60℃
	Storage temperature	-40℃ ~ +85℃
	Relative humidity	0% ~ 90%Relative humidity, none condensation
	EMC	CE, FCC Class B, BSMI
	Safety certification	CB, CCC, BSMI, UL
	Front panel protection	Front panel IP65

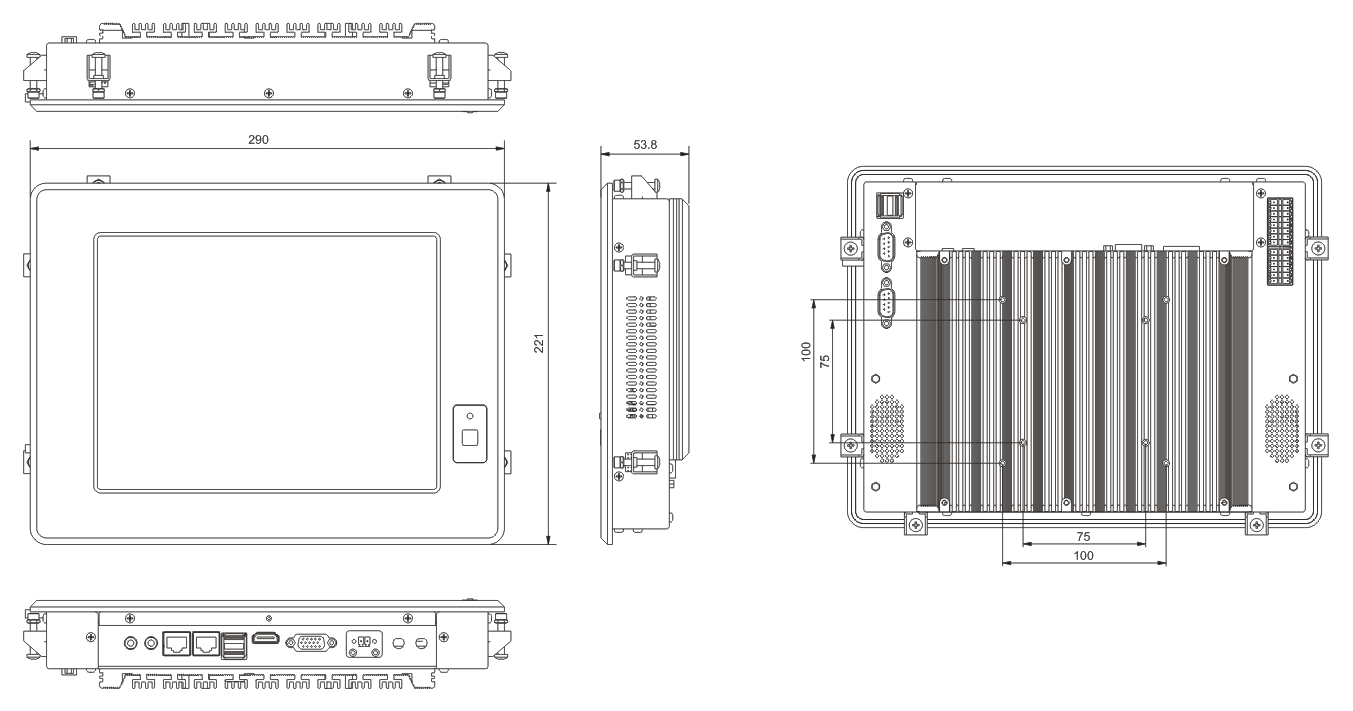

Size

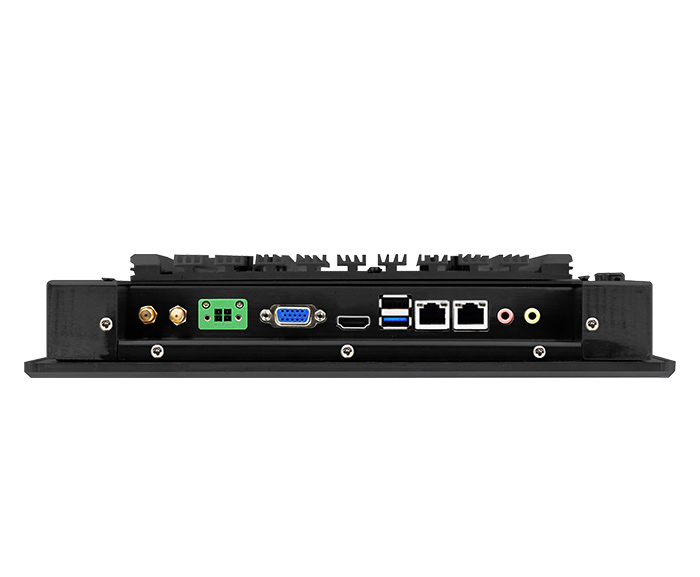

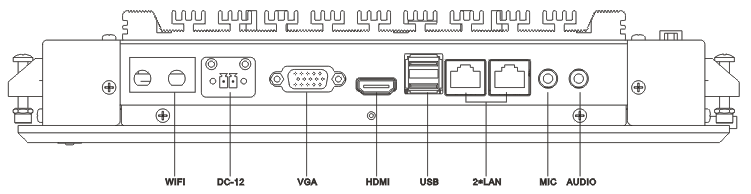

Order Information		I/O?Port presentation
Model	description	?
PPC-HU10A	With HU803?Motherboard（I3-4010U/I5-4200U/I7-4500U）
PPC-BT10A	With BT203?Motherboard（J1900/J1800）
PPC-BU10A	Wtih BU90Z3A?Motherboard(I3-5010U/I5-5200U/I7-5500U)
